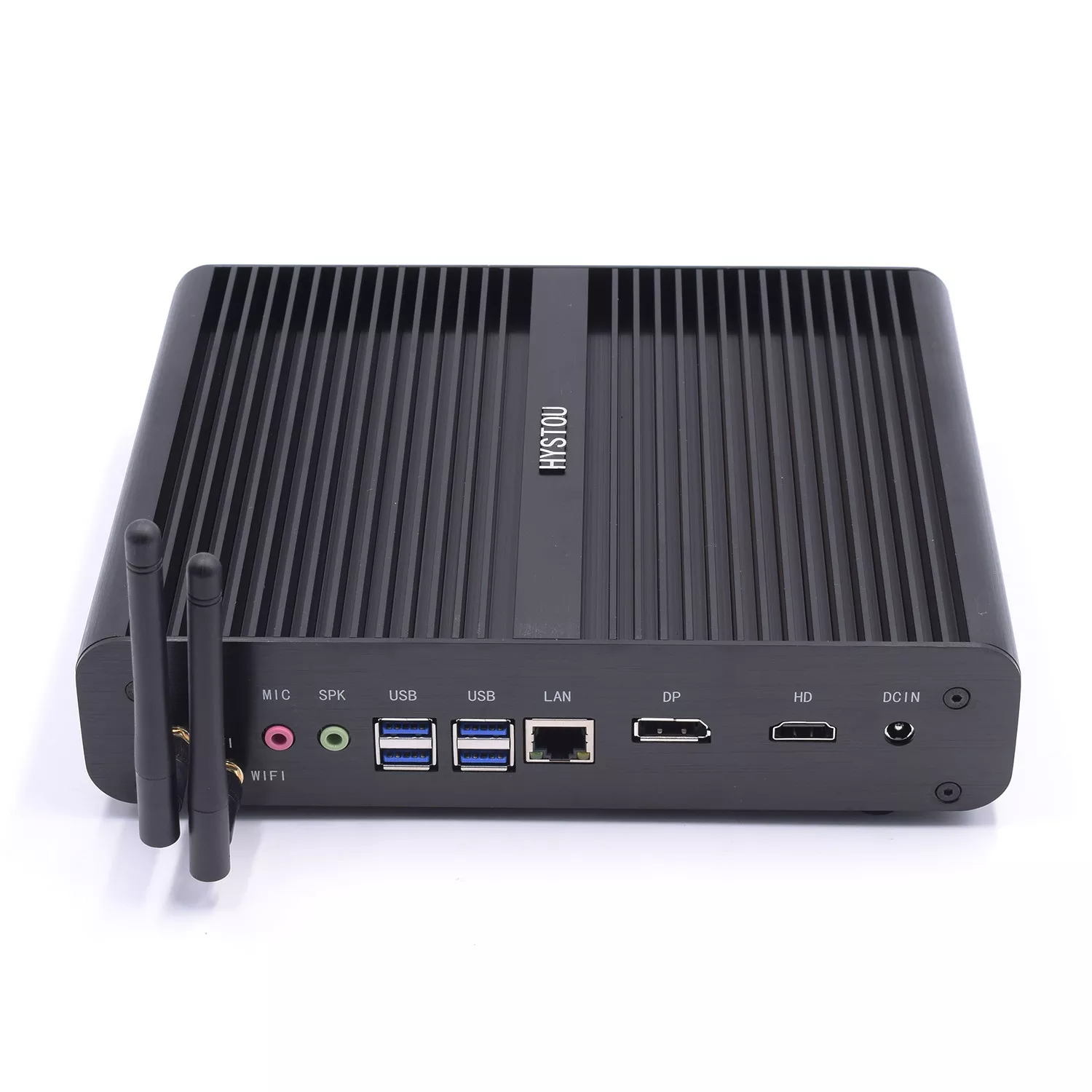

Home Theater Fanless Mini PC Intel Core i7

Home Theater Fanless Mini PC Intel Core i7

Product NameHome Theater Fanless Mini PC Intel Core i7
Item NO.P05B-D4
Weight2.8 kg = 6.1729 lb = 98.7671 oz
CategoryFanless Mini PC
BrandHYSTOU
Creation Time2020-07-13





Hystou Fanless Mini PCs are designed for unique, office, home and training applications. The minicomputer's compact small size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience.


The majority of Comet Lake remains in the same 4-core/8-thread configuration used by Ice Lake, though there’s one single 6-core/12-thread chip. Intel also confirmed that Comet Lake does not use the “Sunny Cove” CPU architecture of Ice Lake. Technically, Comet Lake is built on a 14nm++ process, Intel confirmed.

Highlights:

1)- Advanced newest intel processor, assure powerful performance for gaming, office, drawing;

2)- 2*DDR4 RAM slots 2xfaster than 1 ram slot, DDR4 2xfaster than DDR3;

3)- Triple-Storage: support 1*Msata SSD+1*M.2 NVMe(22x80) SSD+1*2.5'' SATA HD;

4)- Noiseless: Fanless system, all aluminum passive heatsink, low consumption, 0.00dB noise;

5)- Slim volume: Can stand on desk by free bracket we supply, mount back of monitor by VESA bracket;



Available Processors:

1. Intel® Core™ i7-8565U Processor (8M Cache, up to 4.6 GHz);

2. Intel® Core™ i7-10510u Processor (8M Cache, up to 4.9 GHz);

  • Technical Specifications

    Processor

    CPU

    Intel Core i7-8565U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.60    GHz)

    Intel Core i7-10510U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency        4.90 GHz)

    TDP

    15W

    CPU Lithography

    14 nm

    Memory Specifications

    Max Memory Size

    64GB

    Memory Types

    260 pin DDR4 SO-DIMMs

    Memory Channels

    Dual Channels

    ECC Memory

    Don’t support

    Storage Specification

    m.2 SSD

    1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME)

    SATA

    1 x SATA3.0 for 2.5 inch HDD/SSD

    mSATA

    1 x mSATA slot

    Graphics

    Processor Graphics

    Intel® UHD Graphics 620

    HDMI

    1 x HDMI 2.0 (4K)

    DP Port

      1 x DP

    Power Specification

    Power Adapter

    12V Power Input, supply 12V 5A power adapter within the package

    Auto Power On

    Support Auto Power On Function

    In & Out interfaces

    USB Port

    4 x USB 3.0 port, 4 x USB 2.0 port

    Audio

    3.5mm 1 Jack, MIC in/ Line out

    Video

    HDMI+DP Dual Display

    Power Input

    5.5mm 12V In

    Lan Port

    1 x RTL8168/8111/8112 Gigabit NIC

    Com Port

    No

    Others

    System

    Support Windows 7/10, Linux

    Case Material

    Aluminium Alloy

    Dimension

    Mini PC size 223x185x49mm

    Package size 320x260x80mm

    Weight

    Gross weight 2.7 kg



$1.00Price
