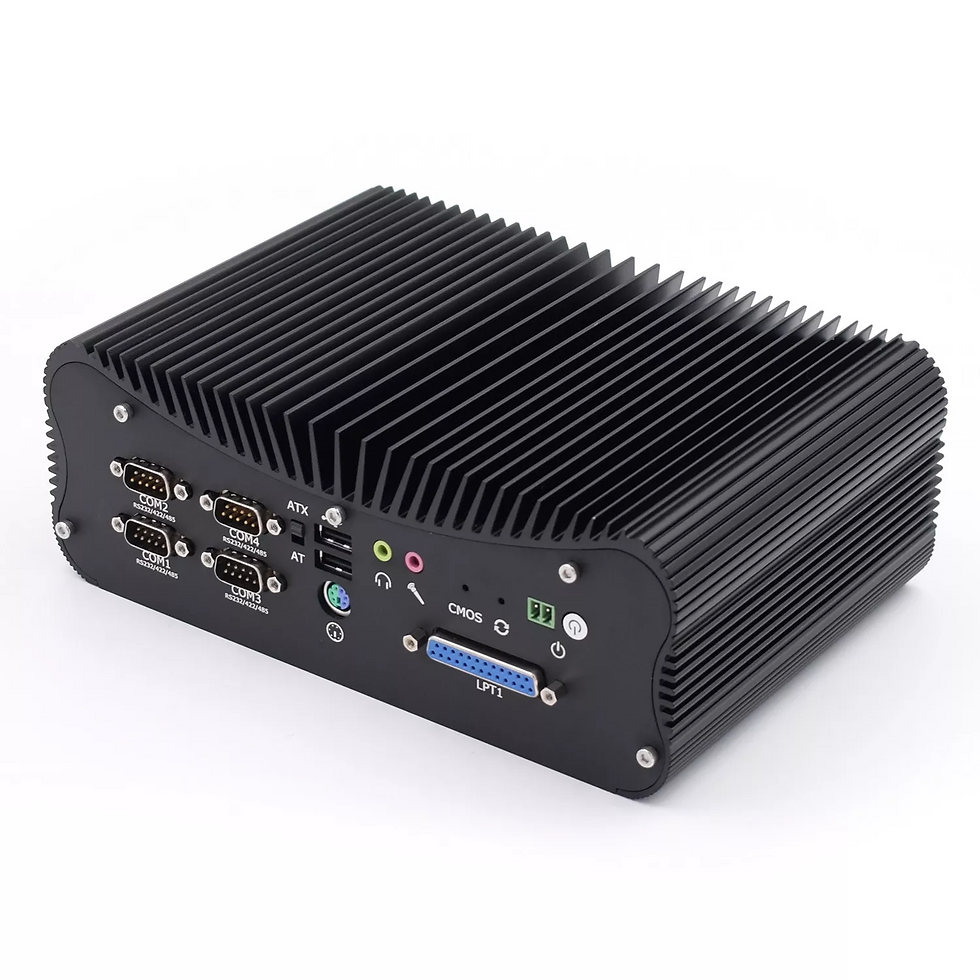

Indutrial Fanless Computer RS485

Indutrial Fanless Computer RS485

Product Name Indutrial Fanless Computer RS485
Item NO. P12B-D3
Weight 3.5 kg = 7.7162 lb = 123.4589 oz
Category Industrial PC > Mini ITX PC
Brand HYSTOU
Creation Time 2020-07-23





Industrial computers are industrial control computers specially designed for industrial use. Their basic performance and compatibility are similar to those of commercial computers, but industrial computers pay more attention to stability in different environments. Hystou industrial computers have excellent stability and can adapt to the requirements of various industrial production environments.



P12-B-DDR3 series highlights:

[Faster Running Speed] Equipped with Intel Core i5-4200U/ Core i7-4500U processor , pre-installed Windows 10 Pro (64-bit). Powerful hardware makes it run more stable. Creates smoothly experience for your visually home entertainment, Streaming video, Web Browsing, Gaming, and Work.



[Memory & Storage] Hystou P12B industrial computer has a built-in DDR3L RAM.1 x SATA3.0 for 2.5 inch HDD/SSD,1*mSATA slot.

[Excellent Waterproof and Dustproof Effect]  Brushed full aluminum alloy silver color shell can effectively waterproof and moisture-proof, increasing the service life of the machine. Fanless operation avoids the requirement of air convection, thereby effectively preventing dust from entering the inside of the mini pc.

[Save Desktop Space] Due to its compact size, the mini host can be placed upright or lying down, freely placed in any small corner of the table, or fixed behind the monitor or TV screen with a special rack. The mini host frees up broader space resources for office and home life.

[No noise & Portability] The fanless design of this mini PC can save power and achieve zero noise. The unique shell design and energy-saving components make cooling faster and more efficient. We presented a mini console stand in the package, which can help you save a lot of space.

[More stable operation] The cooling fan of the fanless mini computer does not use a cooling fan. Instead, a heat sink is distributed on the surface of the chassis. This design solves the problem that the cooling fan works for a long time and causes the internal temperature of the chassis to malfunction, and improves the long-term stability of the mini computer.

[Dual Screen Display]Built with VGA and HDMI port, seamlessly connecting two monitors. With integrated Intel HD graphic to enjoy 4K Web surfing, video playback, watching TV, home theater, enjoy the entertainment with your family. Support 2.4G/5.8G Band WiFi.

[Great Home Theater PC] The mini desktop computer comes with 4K ultra high definition streaming capability, giving you a best-in-class television experience with true-to-life picture quality, which can be used as a media center to enjoy TV shows or games.

[Rich and diverse ports] 4 x USB 3.0 port, 2 x USB 2.0 port;3.5mm Jack, MIC in/ Line out;2 x Intel-I210/I211 Gigabit RJ45 Lan;2*RS232 Com port, 4*RS485 Com port.





Available processors:

1.Intel Core i5-4200U (3M Cache, 2 Cores 4 Threads, Base Frequency 1.60 GHz Turbo Frequency 2.60 GHz)
2.Intel Core i7-4500U (4M Cache, 2 Cores 4 Threads, Base Frequency 1.80 GHz Turbo Frequency 3.0 GHz)

  • Technical Specifications

    Processor

    CPU

    Intel Core i5-4200U (3M Cache, 2 Cores 4 Threads, Base Frequency 1.60 GHz Turbo Frequency 2.60    GHz)

    Intel Core i7-4500U (4M Cache, 2 Cores 4 Threads, Base Frequency 1.80 GHz Turbo Frequency 3.0    GHz)

    TDP

    15W

    CPU Lithography

    22 nm

    Memory Specifications

    Max Memory Size

    8GB

    Memory Types

    204 Pin DDR3L SO-DIMM Socket

    Memory Channels

    Single Channel

    ECC Memory

    Don’t support

    Storage Specification

    m.2 SSD

    No

    SATA

    1 x SATA3.0 for 2.5 inch HDD/SSD

    mSATA

    1 x mSATA slot

    Graphics

    Processor Graphics

    Intel® HD Graphics 4400

    HDMI

    1 x HDMI

    VGA

      1 x VGA

    Power Specification

    Power Adapter

    9 to 36V wide voltage power input, supply 12V 5A power adapter within the package, 24V power      supply need to customize

    Auto Power On

    Support Auto Power On Function

    In & Out interfaces

    USB Port

    4 x USB 3.0 port, 2 x USB 2.0 port

    Audio

    3.5mm 1 Jack, MIC in/ Line out

    Video

    HDMI+VGA Dual Display

    Power Input

    12V In

    Lan Port

    2 x Intel-I210/I211 Gigabit RJ45 Lan

    Com Port

    2 x RS232 Com port, 4 x RS485 Com port

    Others

    System

    Support Windows 7/10, Linux

    Case Material

    Aluminium Alloy

    Dimension

    Mini PC size 249x150x86mm

    Package size 315x285x135mm

    Weight

    Gross weight 3.5kg

  • Specs
