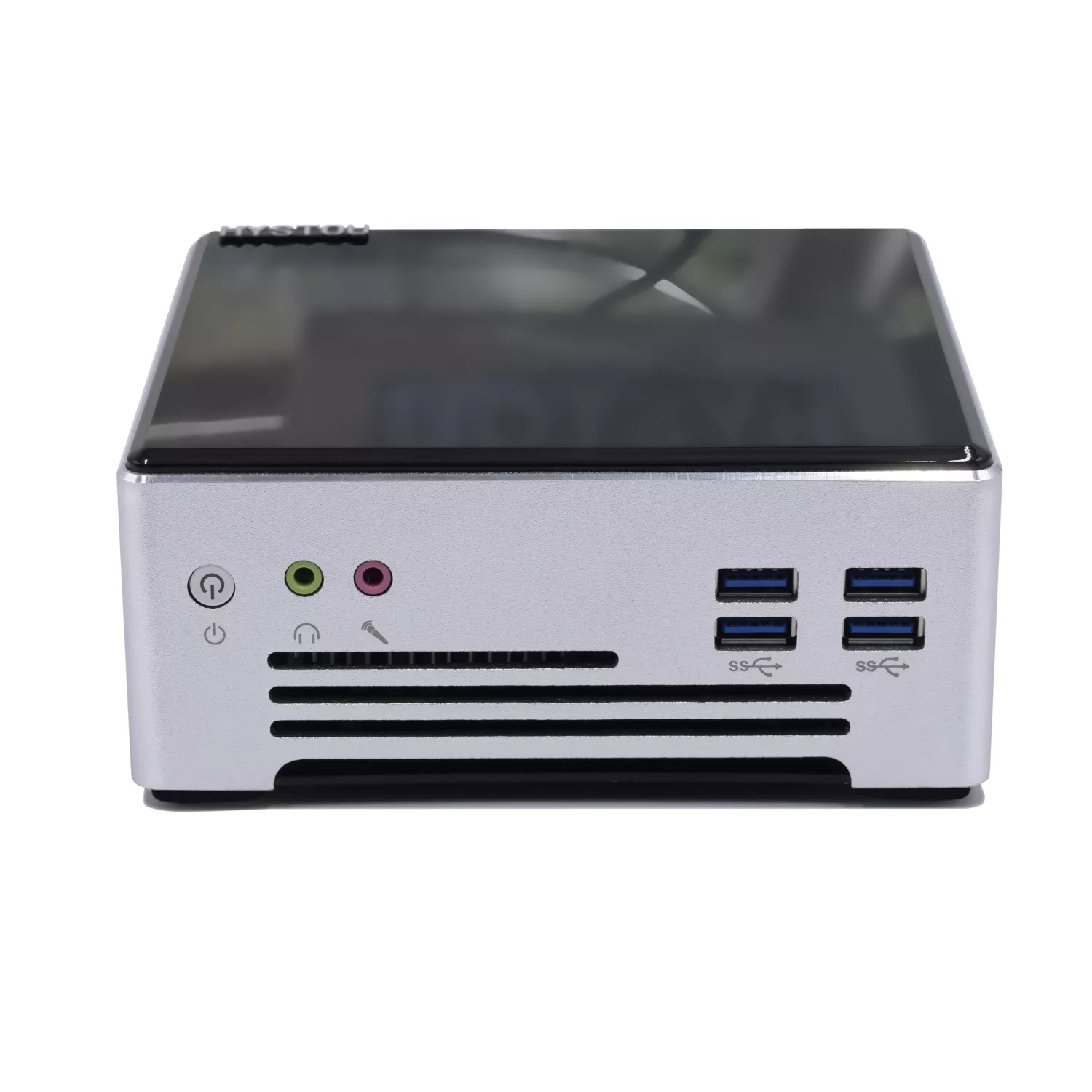

Mini Gaming Micro Computer M5

Mini Gaming Micro Computer M5

Product Name Mini Gaming Micro Computer M5
Item NO. M5
Weight 1.5 kg = 3.3069 lb = 52.9109 oz
Category Mini PC
Brand HYSTOU
Creation Time 2020-07-21







Most traditional large desktop consoles have an old-fashioned shape that can no longer meet the aesthetic needs of modern people. However, the stylish appearance design of Hystou Micro Computer M5, coupled with small and exquisite design, is very good whether it is placed on a desk, living room or study. The sense of art brings a more pleasant experience to life and work.



Product Highlight M5:

[Faster Running Speed] Equipped with Intel Core i7 7700HQ/ i7 7820HK/  i5 7440HQ/ i5 7300HQ  processor , pre-installed Windows 10 Pro(64-bit) Mini PC. Powerful hardware makes it run more stable. Creates smoothly experience for your visually home entertainment, streaming video, web browsing, gaming and work.

[Memory & Storage]  Memory types: 260 pin DDR4 SO-DIMMs. Dual DDR4 260 pin SO-Dimm laptop memory make the mini pc much faster than others with Dual DDR3 memory. Storage:2 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME), one support M.2 SATA.

[Small and Portable] The volume of a mini pc is generally 1/30 of the volume of a traditional desktop host, which is approximately equivalent to the thickness of a 130-page book and smaller than a piece of A4 paper. Since the mini host looks like a book standing quietly on the table, the mini host is also called "book computer".

[Easy to Update and Maintain] The mini pc is small and portable, so it is very convenient whether it is software update or hardware update. If you need to expand the memory hard drive, you only need to use a screwdriver to open the cover of the mini host. The motherboard structure and hardware inside the chassis are clear at a glance, which is very easy to replace.

[Windows 10 Pro] Pre-installed with Windows 10 Pro(64bit) OS.Support Auto-on after power failure(1.Press On/Off Switch on the pc and then keep press “Delete”until goes into bios 2.Find “State After G3” under “PCH_IO configuration” page, change “s5 state” to “s0 state”, press “Enter” key. 3.Press “F10” key to save the setting and finish the setting. From now on any illegal shutdown will bring auto power on after the pc connect to main supply.)

[Rich and Diverse Ports] 6 x USB 3.0 port;5.5mm 19V In;2 x RJ45 Lan, RTL8168/8111/8112 Gigabit Ethernet Controller;Inside 433 Mbps & Bluetooth 4.2.



Processor Performance:
1. 7th Gen 14nm CPU Kaby Lake Intel Core i7 7700HQ 4 cores 8 threads 2.8GHz up to 3.8GHz 6MB cache TDP 45W HD Graphics 630.
2. 7th Gen 14nm CPU Kaby Lake Intel Core i7 7820HK 4 cores 8 threads 2.9GHz up to 3.9GHz 8MB cache TDP 45W HD Graphics 630.
3. 7th Gen 14nm CPU Kaby Lake Intel Core i5 7440HQ 4 cores 4 threads 2.8GHz up to 3.8GHz 6MB cache TDP 45W HD Graphics 630.
4. 7th Gen 14nm CPU Kaby Lake Intel Core i5 7300HQ 4 cores 4 threads 2.5GHz up to 3.5GHz 6MB cache TDP 45W HD Graphics 630

  • Technical Specifications

    Processor

    CPU

    Intel Core i7 7700HQ (6M Cache, 4 Cores 8 Threads, Base Frequency 2.80 GHz Turbo Frequency        3.80 GHz)

    Intel Core i7-7820HK (8M Cache, 4 Cores 8 Threads, Base Frequency 2.90 GHz Turbo Frequency    3.90 GHz)

    Intel Core i5 7440HQ (6M Cache, 4 Cores 4 Threads, Base Frequency 2.80 GHz Turbo Frequency        3.80 GHz)

    Intel Core i5 7300HQ (6M Cache, 4 Cores 4 Threads, Base Frequency 2.50 GHz Turbo Frequency        3.50 GHz)

    TDP

    45W

    CPU Lithography

    14 nm

    Memory Specifications

    Max Memory Size

    32GB

    Memory Types

    260 pin DDR4 SO-DIMMs

    Memory Channels

    Single Channels

    ECC Memory

    Don’t support

    Storage Specification

    m.2 SSD

    2 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME), one support M.2 SATA

    SATA

    1 x M.2 SATA

    mSATA

    NO mSATA slot

    Graphics

    Processor Graphics

    Intel® HD Graphics 630

    HDMI

    1 x HDMI (4K)

    DP Port

    1 x DP Port (4K)

    Power Specification

    Power Adapter

    19V Power Input, supply 19V 7A power adapter within the package

    Auto Power On

    Support Auto Power On Function

    In & Out interfaces

    USB Port

    6 x USB 3.0 port

    Audio

    3.5mm 1 Jack, MIC in/ Line out

    Video

    HDMI + DP Dual 4K output

    Power Input

    5.5mm 19V In

    Lan Port

    2 x RJ45 Lan, RTL8168/8111/8112 Gigabit Ethernet Controller

    Wi-Fi

    Inside 433 Mbps & Bluetooth 4.2

    Others

    System

    Support Windows 7/10, Linux

    Case Material

    Alloy + Plastic

    Dimension

    Mini PC size 150x65x137mm

    Package size 310x205x70mm

    Weight

    Gross weight 1.5 kg



$1.00Price
