Small Form Factor Fanless Mini PC H5

Small Form Factor Fanless Mini PC H5

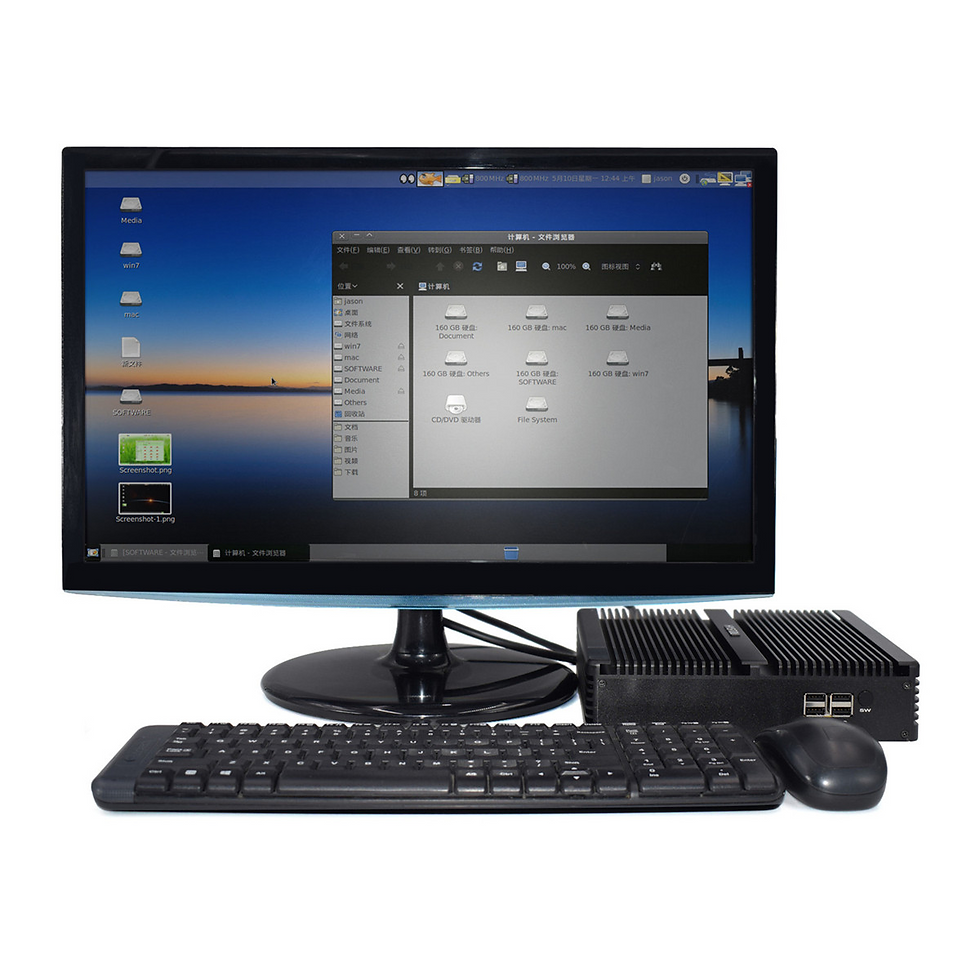

Product Name Small Form Factor Fanless Mini PC H5
Item NO. H5
Weight 2.5 kg = 5.5116 lb = 88.1849 oz
Category Fanless Mini PC
Brand HYSTOU
Creation Time 2020-07-10





Launched on early Sep 2019, designed for unique, office, home and training applications. The H5 Fanless PC's compact small size, durability, high reliability, universal performance and low power requirement help users getting much better.


H5 Mini PC high light:

[Support 3 Synchronized Displays] Built with 1xHDMI, 1XEDP, 1 x DPport, support 3 synchronized displays. With integrated Intel HD graphic to enjoy 4K Web surfing, video playback, watching TV, home theater, enjoy the entertainment with your family.

[Faster Running Speed] Equipped with  Intel 8th Gen Core i5-8250U and i7-8550U Quad Core Processor, 8M Cache max Turbo 3.4 up to 4.0 GHz., pre-installed Windows 10 Pro 64-bit Mini PC. Powerful hardware makes it run more stable. Creates smoothly experience for your visually home entertainment, Streaming video, Web Browsing, Gaming, and Work.
[Great Home Theater PC] The mini desktop computer comes with 4K ultra high definition streaming capability, giving you a best-in-class television experience with true-to-life picture quality, which can be used as a media center to enjoy TV shows or games.

[Memory & Storage] Dual DDR4 260 pin SO-Dimm laptop memory make the mini pc much faster than others with Dual DDR3 memory. Storage: 1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME),1 x  SATA3.0 for 2.5 inch HDD/SSD,1 x mSATA slot.

[Windows 10 Pro] Pre-installed with Windows 10 Pro(64bit) OS.Support Auto-on after power failure(1.Press On/Off Switch on the pc and then keep press “Delete”until goes into bios 2.Find “State After G3” under “PCH_IO configuration” page, change “s5 state” to “s0 state”, press “Enter” key. 3.Press “F10” key to save the setting and finish the setting. From now on any illegal shutdown will bring auto power on after the pc connect to main supply.)
[No noise & portability] The fanless design of this mini PC can save power and achieve zero noise. The unique shell design and energy-saving components make cooling faster and more efficient. We presented a mini console stand in the package, which can save a lot of space.



Available Processors:
1. Intel® Core™ i5-8250U Processor (6M Cache, up to 3.4 GHz);
2. Intel® Core™ i7-8550U Processor (8M Cache, up to 4.0 GHz);

  • Technical Specifications

    Processor

    CPU

    Intel Core i7-8550U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.0    GHz)

    Intel Core i5-8250U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.40    GHz)

    TDP

    15W

    CPU Lithography

    14 nm

    Memory Specifications

    Max Memory Size

    64GB

    Memory Types

    260 pin DDR4 SO-DIMMs

    Memory Channels

    Dual Channels

    ECC Memory

    Don’t support

    Storage Specification

    m.2 SSD

    1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME)

    SATA

    1 x SATA3.0 for 2.5 inch HDD/SSD

    mSATA

    1 x mSATA slot

    Graphics

    Processor Graphics

    Intel® UHD Graphics 620

    HDMI

    1 x HDMI 2.0 (4K)

    DP Port

      1 x DP+1 x EDP

    Power Specification

    Power Adapter

    12V Power Input, supply 12V 5A power adapter within the package

    Auto Power On

    Support Auto Power On Function

    In & Out interfaces

    USB Port

    4 x USB 3.1 port, 4 x USB 2.0 port

    Audio

    3.5mm 1 Jack, MIC in/ Line out

    Video

    HDMI+DP+EDP, support 3 Synchronized displays

    Power Input

    5.5mm 12V In

    Lan Port

    2 x Intel-I210/I211 Gigabit RJ45 Lan

    Com Port

    No Com Port

    Others

    System

    Support Windows 7/10, Linux

    Case Material

    Aluminium Alloy

    Dimension

    Mini PC size 218x175x50mm

    Package size 320x260x80mm

    Weight

    Gross weight 2.8 kg
